BP Sedimentation Tube, Setting Tube Mold
Oilfield Cement testing requires that many different shaped samples be analyzed to measure properties such as compressive strength, tensile strength, permeability, expansion coefficient, settling rate, and many more. Cement Test Equipment molds provide operators with accurately engineered and manufactured solutions for physical properties testing.
Cement Settling/Stability Testing Tube Kit is a comprehensive kit that tests oil and gas well cement stability. The TG-610 is easy-to-use, compact, lightweight, and portable. It includes a solid-brass tube and an easy twist on/off top and bottom cap.
During well operation, the cement settling process often causes free water or fluid to develop, which can compromise well integrity and zonal isolation. The TG-610 simulates well cement settling under elevated temperature and pressure, determining critical settling characteristics of cement samples to allow the user to evaluate cement stability.
Cement slurry is first poured into the tube. Next, the tube is placed inside a high-temperature bath, curing chamber, or HTHP consistometer. Once cured, the hardened inner cylindrical column of the cement sample can be sliced into cross-sections. Each cross-section’s density is measured to determine how much the cement sample settled, representing the sample’s stability in an actual oil and gas well. Using these results, ideal cement compositions can be engineered to minimize settling and optimize the integrity of the well.
The TG-610 is a powerful testing tool, accurately measuring stability that can be applied to real-life cementing applications. This product is compatible with most standard high-temperature water baths, curing chambers, and consistometers. It is also conveniently compatible with the HTHP curing chamber, HTHP consistometer, Water bath, etc.
Features
Tests the settling characteristics of well cement

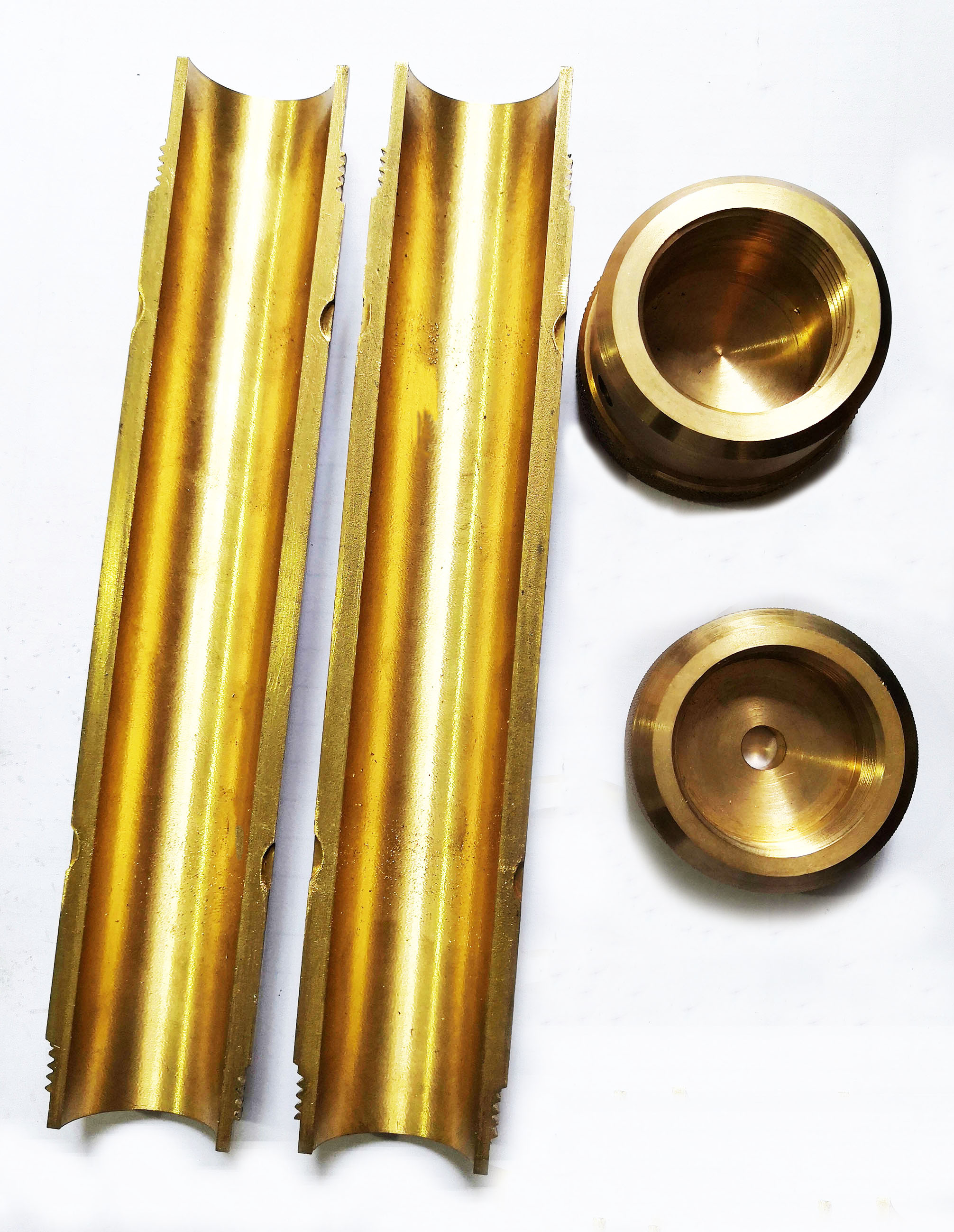

Includes brass tube, top and bottom cap, and two hose clamps(Material: brass H62)
- Easy-to-use, compact, lightweight, and portable.
- Comprehensive, advanced testing tool accurately simulates and measures settling.
- Results determine slurry stability in real-world cementing applications.
- Results allow users to engineer cementing solutions that optimize well integrity.
- Withstands high-temperature testing.
- Compatible with most standard high-temperature water baths, curing chambers, and consistometers.
- Compliances: API Recommended Practice 10B-2
