Cement thickening time tester, Cement Testing Equipment

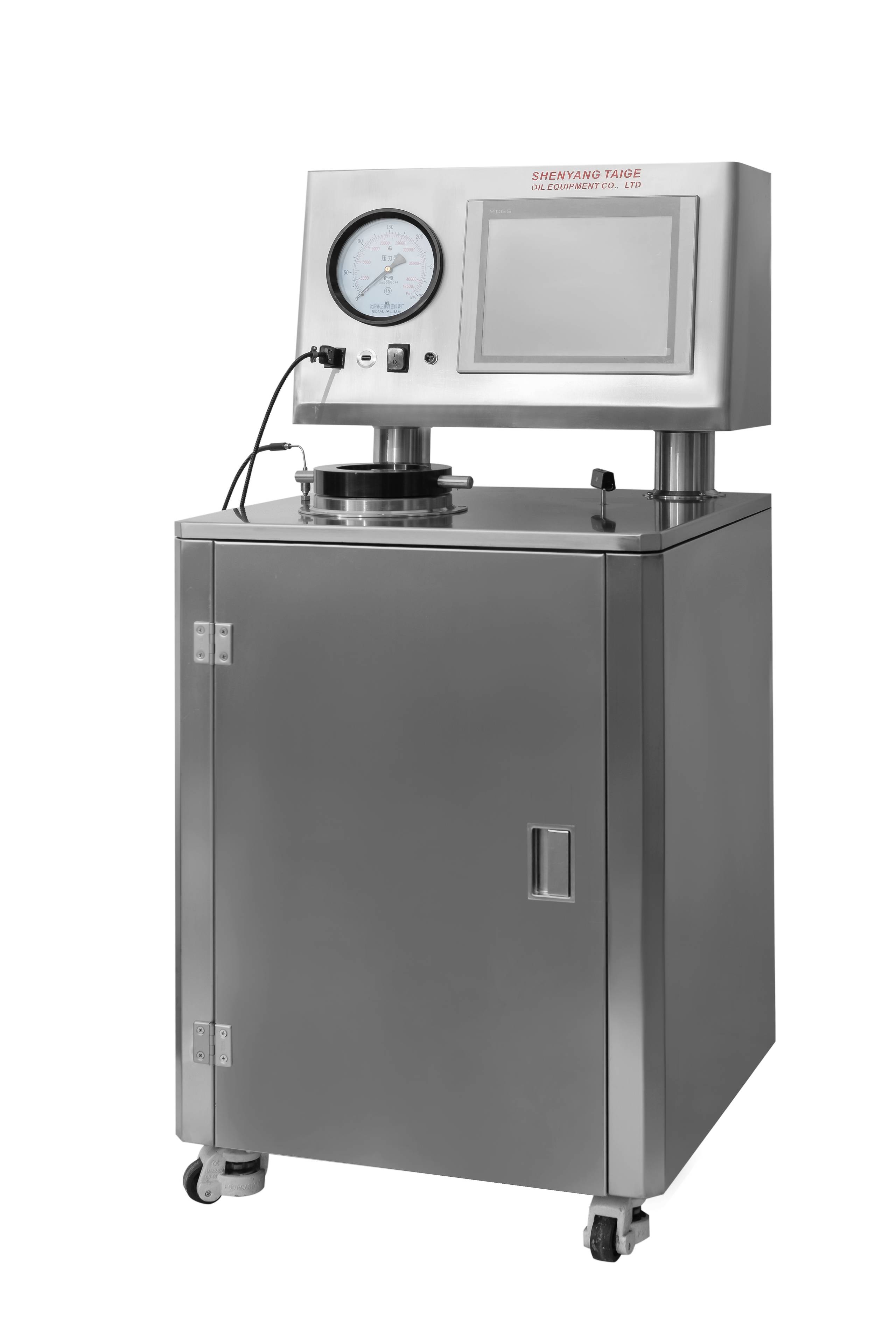

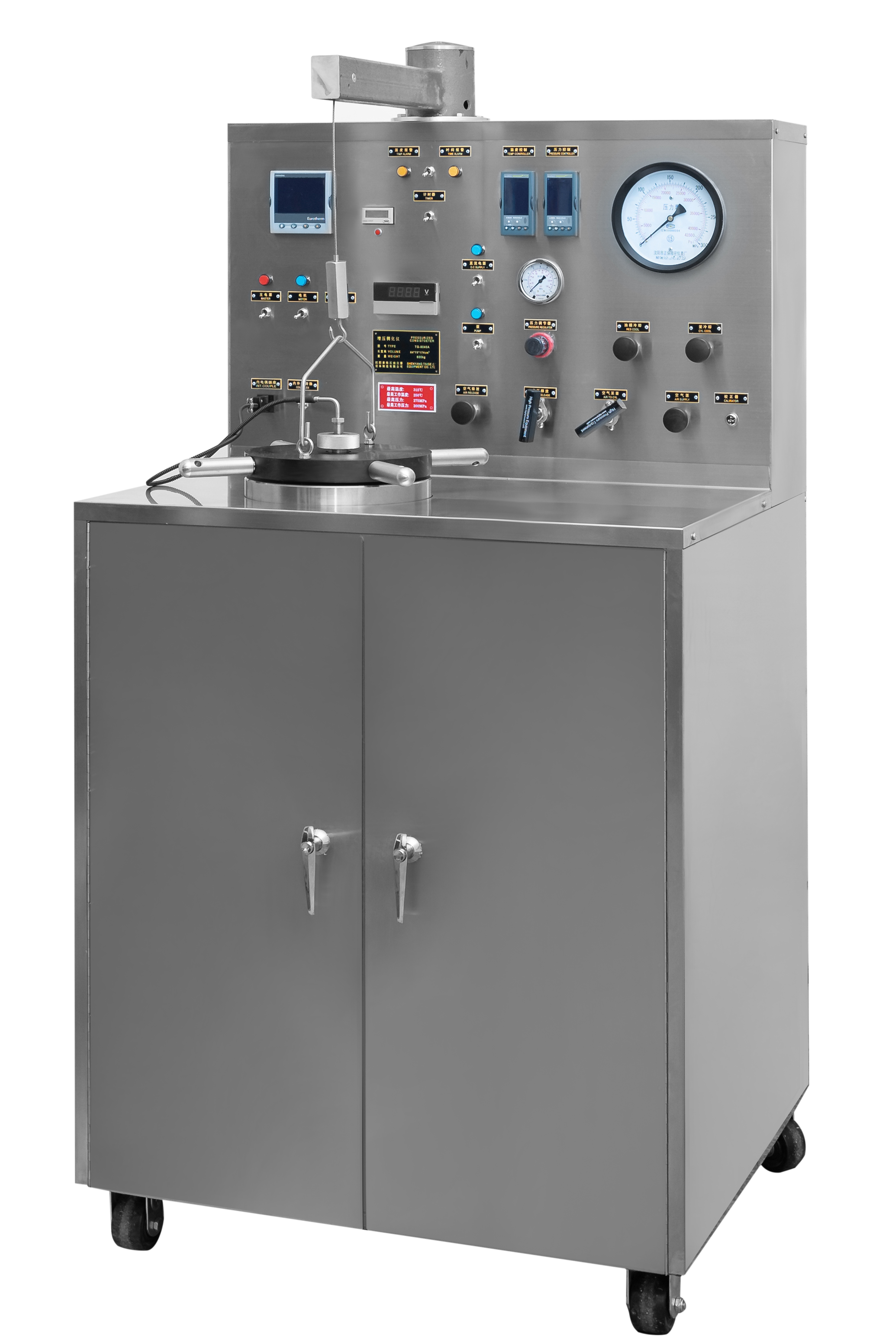

High Temperature High Pressure Consistometer

Function

HTHP Consistometers are specifically designed to test cement’s thickening time under high temperature high pressure condition in strict accordance with API 10 specification.

Specifications

Maximum Input Power: 10KW

Input Voltage: 220V

Maximum Temperature: 315℃

Maximum Pressure: 275MPa

Heater Power: 8KW

Slurry Cup Rotational Speed:

150 rpm±15 rpm

Cooling Water Pressure: 02-0.6MPa

Viscosity Range: 0-100Bc

Compressed Air: 0.5-0.8MPa

Operating temperature: 10-40℃

Environment Humidity: ≤70%RH

 Configurations

A. boosting pump compressed ratio 555：1

B. valve

C. temperature program controller

D. pressure program controller

E. Digital LCD recorder

F. Pressure sensor

G. Pressure gauge

H. speed adjustable motor

FEATURES

a. Temperature programming control

b. Pressure programming control

c. Digital display and continuous record of temperature, pressure and consistency

d. Auto alarming and stop in case of limits of temperature, pressure and consistency

e. Computer-recorded and storage of temperature, pressure and consistency

f. Data acquisition system
